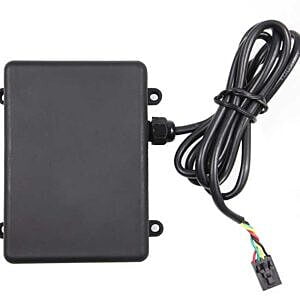

JIYI Ground Radar Senser For K3A Pro
₹24,999.00 ₹34,999.00
Out of stock
SPECIFICATION -
-Product weight: 50g
-Modulation method: FMCW
-Center frequency: 24.125 GHz
-Height measurement range: 0.3-15m (land)
Product Details
JIYI K3APRO A terrain detection radar that can operate according to the flight controller. It cannot operate alone.
The terrain detection radar module uses millimeter wave radar technology. By continuously scanning the radar, the drone senses terrain changes in the direction of flight and adjusts the flight height according to the terrain and the height of the crop to achieve uniform application during flight. The terrain detection radar module has stable detection performance, excellent environmental applicability, strong anti-interference capability, is not affected by light, has a long detection distance, and has all-weather characteristics.
Connection method: It is necessary to scrape the protruding part and connect (the protruding part will be shipped in a processed state, but if it is not processed, please scrape the protruding part yourself),
Connect the red wire to the K3A PRO EXT connector on the left.
Product Specifications:
Product size: 82.4 * 74.2 * 20mm
Product weight: 50g
Modulation method: FMCW
Center frequency: 24.125 GHz
Height measurement range: 0.3-15m (land)
Height measurement accuracy: 0.05m
Output frequency: 50Hz
Power consumption: 1.5W @ 25 ℃
Operating voltage: 6-28V
Operating temperature: -20 ℃-+ 85 ℃
Waterproof grade: IP67
Terminal type: UART
The terrain detection radar module uses millimeter wave radar technology. By continuously scanning the radar, the drone senses terrain changes in the direction of flight and adjusts the flight height according to the terrain and the height of the crop to achieve uniform application during flight. The terrain detection radar module has stable detection performance, excellent environmental applicability, strong anti-interference capability, is not affected by light, has a long detection distance, and has all-weather characteristics.
Connection method: It is necessary to scrape the protruding part and connect (the protruding part will be shipped in a processed state, but if it is not processed, please scrape the protruding part yourself),
Connect the red wire to the K3A PRO EXT connector on the left.
Product Specifications:
Product size: 82.4 * 74.2 * 20mm
Product weight: 50g
Modulation method: FMCW
Center frequency: 24.125 GHz
Height measurement range: 0.3-15m (land)
Height measurement accuracy: 0.05m
Output frequency: 50Hz
Power consumption: 1.5W @ 25 ℃
Operating voltage: 6-28V
Operating temperature: -20 ℃-+ 85 ℃
Waterproof grade: IP67
Terminal type: UART
